Welcome to APT.
Our Specialist Tools have won first places and design awards and are the leading
way for most tradesmen. We take great pride in
knowing that our tools are proven to be the best in their field. Design and Copy
Rights are in place and current Patents are
applied for.
PRO-STAFF X
Professional Bricklayer Profiles
will allow you to build most constructions.
We can crop the Staffs to a shorter size for carrying in the car boot, if
wanted.
PRO-STAFF 22 with long stays set up and F Clamps etc.
PRO-DOLLY
For all your overhand and feature work.
POINTMASTER
(and Mortar Gun) allows for joint-raking and all forming
irons.
THE JAK BRICKLIFTER
is designed lightweight for ease of use.
POWERGRAB Kerb Lifting and
and laying Tool.
Our bricklaying
tools are specified standards in most countries, which are illustrated in the BDA publication "A Guide
to Successful Brickwork" and are approved by the NHBC. All of our Tools
are :-
"Time Saving and Money Making".
_______________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
Setup on foundations
Construction in progress
Close up of Dolly
Self supporting Staff 2nd Lift
Dolly Feature-Work
S et for next course

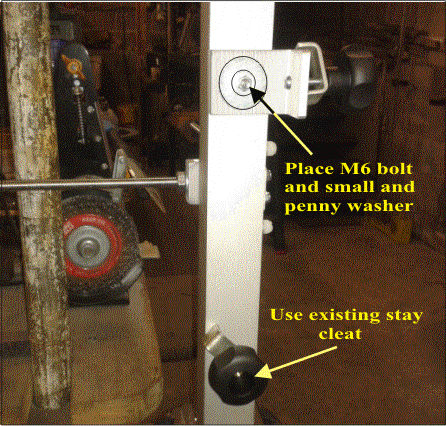

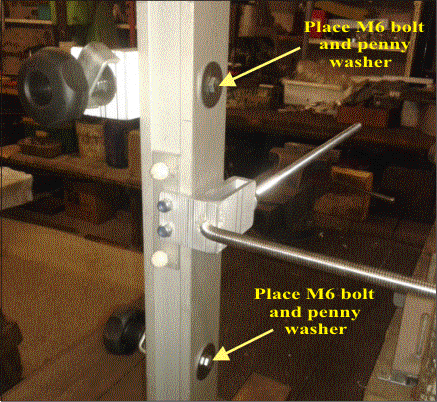

For Prostaff 22, fit bolts and washers provided so the Dolly can pass the bolts
and stay middle clamp inhibited
The Prostaff Dolly is another addition to the Prostaff System, that can help to
save you time so you can make more money.
Place the Dolly to the correct gauge you set on the Prostaff for brick or
block-work and make sure that your staff is plumb and secure at all times.
The slide hitch has two nylon thumb-screws so you can secure it fully to your
best gauge position on the Staff.
The line is usually set to the underside of the thread-bar and to your gauge on
the Staff, and for any material that may pass under it.
It is preferable to use 4 Dolly’s so that the line pull is equal to each staff
and that should keep each dolly square to corner.
The Dolly is made from high tensile aluminum and steel parts and will give you
many years of good use.
There are M10 nuts on the thread-bar so you can place them for the lines you set
or you can remove these nuts if you want and place your own marks on the bar for
the same purpose.
Above any feature work when the construction returns to the original face line,
such as over a lintel, you can remove the Dolly and return to use the original
line hitch.
You can also place the intermediate stay on the main staff as you go as usual.
You can use the Dolly on retaining walls for such as 225mm work and so on, to
line both sides of the wall.
________________________________________________________________________________
The Jak Lifting Tool
_________________________________________________________________________________
POINTMASTER
Please Note:
The High Tensile Raking
Pin's can be reversed for 10mm plus or 6mm
raking and finishing, one will last
for the jointing of about 10 houses.
______________________________________________________________________________

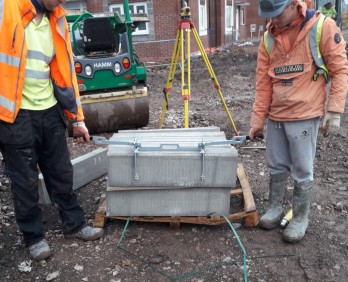

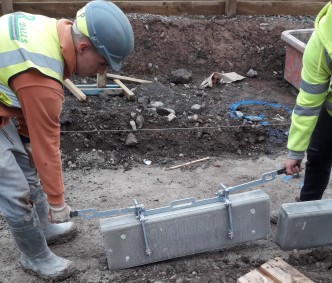

Stringing out from the stack COMING
SOON!

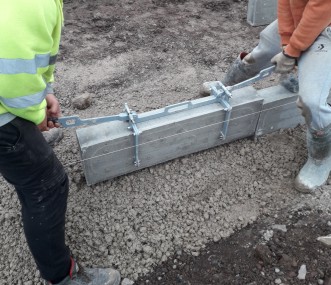

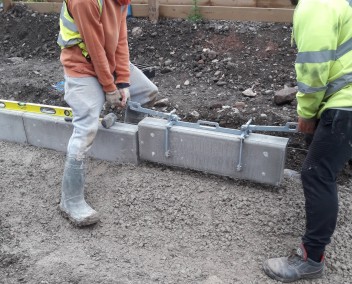

Placing on the bed

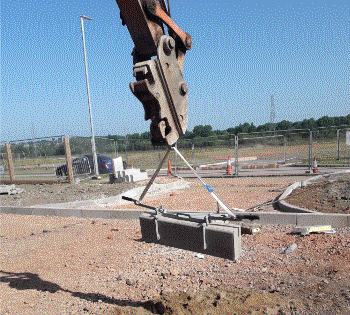

Lifting with machine sling

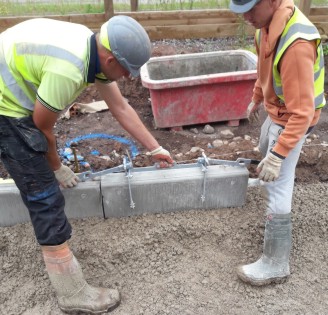

Removing Tool to bed and line

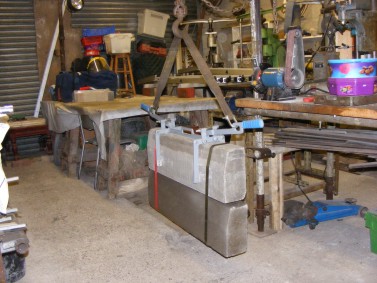

Workshop Lifting Test for SWL of 100 Kilo
We can adapt our system to lift slabs, pipes,
copings, lintels, and specials made to order
Purchase and user Agreement: Must include and/or any
Items/tools/ parts/legs/components/replacements, etc: Upon sale or acquirement
of any item the purchaser/owner/user must be responsible for its safe working
order and use and must inspect any item daily for wear and/or deviation of any
part and/or material and if found must replace the whole and/or part
immediately. Only appropriate lifting slings and/or chains must be used and must
be tested accordingly with their regulations of use. Bodily/Limbs must not be
within four meters of any swing and/or fall angle of machine lifted items and a
latch pole or rope must be used where appropriate. Machine operators must not
travel with any lifted items, nor jerk, nor swing any object in the process of
and/or lifting, placing and bedding-in. The item can be manually manoeuvred via
the handles, only when it is stopped at its bedding-in location, bodily/limbs
must not be within the fall angle of manually lifted and/or manoeuvred items.
All lifting and lifted items must only be used at ground level. All items must
only be used on new, dry, clean products. Any item must only be used for lifting
its intended specified single product. Instructions must be adhered to.
Standards and/or additions must not be manufactured, used, copied, modified or
repaired in any way, or offered for hire, resale, or reward by no other than
A.P.T. Only A.P.T. supplies must be used. Contravention of any terms will be a
breach of agreement and/or infringement of either/or Patent Rights, Trade Mark
Rights, Intellectual and Copyrights, Legal Rights, Design Rights, and all Rights
Reserved. This condition order agreement must be the knowledgeable acceptance by
any purchase or acquirement of any item by and for and/or any user of which any
user must be fully instructed of each use and informed of all of the conditions
herein prior to any use of any item, current conditions will be provided at
anytime and must be fully available to any user to be adhered to and applied at
all times.
_________________________________________________________________________________
Notices:
We deliver by courier service and so cannot be liable for any damages in
transit.
If you are not satisfied with the product a refund may be availably if returned
in the original condition, and customers must pay for the return postage.
Dear Fellow Tradesmen
In the initial learning of using
the level to construct any brick, block or stone feature, will build confidence
and skill in any apprentice or trainee. Our new Prostaff X will also allow
apprentices to learn and adopt such system before they embark onto the building
site.
Most brickwork professionals and
tutors understand that during production bricklaying, the traditional practice of building
corners can result in the coursing being out of gauge,
because they are still wet when the weights of the above courses are directly
applied. The latter can result in different sized bed joints and line wander,
and that will reflect through the whole construction, and so:-
Our new Prostaff X will save at
least 30% in time over traditional methods of construction, because it is a tool
that incorporates all the regulation gauges needed for building any section of wall
consistently precise as the wall construction will equally progress, and:-
Our Prostaff X will fit all
types of wall constructions (without any need for mountains of additional or
extra equipment), it is easy to set up and use and has become the preferred
integral self stabilized lightweight robust bricklayer’s
profile, that provides a consistent precise standard for anyone who uses them.
The Prostaff X has become “THE
PROFESSIONAL BRICKY’S CHOICE”!
Yours Sincerely,
D J Jones APT
